What are the methods of using and adjusting the overall wardrobe long hinge
2024-12-03
In the process of frequent opening and closing of the whole wardrobe door, the most to be tested is afraid of hinges, that is, wardrobe hinges. This issue of China wardrobe network to explain the overall wardrobe hinge use and adjustment methods, come to learn it.

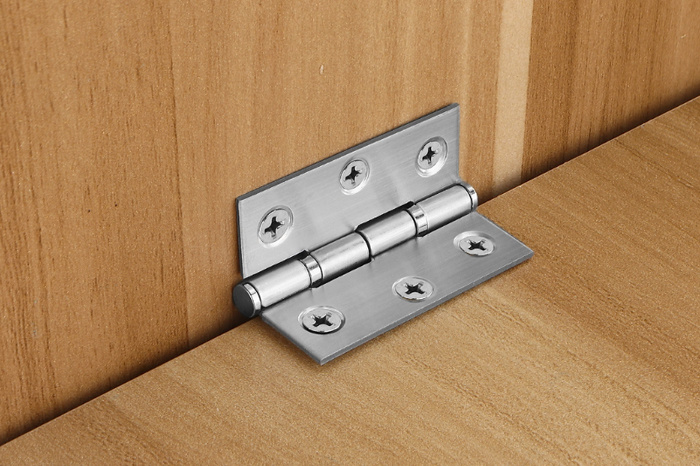

Wardrobe hinge, also known as wardrobe door hinge, is what we often say wardrobe hinge, wardrobe door hinge, the simplest wardrobe hinge is connected by two patches, in the connection through mechanical processing with an iron bar. Connected patches can be free to move, respectively, in the two patches on top of the hole, a piece of fixed in the wardrobe door, the other is fixed in the side of the wardrobe, so that the wardrobe cover door can be free to open and close, easy to open.
Custom furniture, custom wardrobe, overall wardrobe cabinet door installation away from the use of hinges, the following is the use of the overall wardrobe hinge and adjustment methods.
About the overall wardrobe hinge
Material: iron, steel (stainless steel), alloy, copper
Process: mould casting, stamping
Type: hinge [iron, copper, stainless steel] spring hinges [need to hit the hole, do not need to hit the hole] gate hinges [ordinary type, bearing type, flat] other hinges [countertop hinges, flap door hinges, glass hinges]
Overall wardrobe hinge installation method
Full cover: the door covers the side panel of the cabinet, there is a certain gap between the two, so that the door can be opened safely. Straight arm 0MM
Half cover: two doors share a cabinet side panel, there is a required minimum gap between them, the coverage distance of each door is reduced, the need to use the hinge arm curved hinges. Centre hinge 9.5mm
Inside: the door is located inside the cabinet, next to the cabinet side panels, which also require a clearance to allow the door to open safely. Very curved hinges are required. Large 16mm
Overall wardrobe hinge adjustment method
A: Door cover distance adjustment: screws to the right, the door cover distance becomes smaller (-) screws to the left, the door cover distance becomes larger
B: Depth adjustment: Direct and continuous adjustment by eccentric screws.
C: Height adjustment: precise height adjustment by means of a height-adjustable hinge base.
D: spring force adjustment: some hinges can adjust the closing force of the door in addition to the common three-dimensional adjustment, generally based on the maximum force required for tall and heavy doors, when applied to narrow doors and glass doors, it is necessary to adjust the spring force. The spring force can be reduced by up to 50 per cent by turning the hinge adjusting screw one turn.
Turning the screw to the left: the spring force is weakened (when used on small doors, it reduces noise).
Turn the screw right: the spring force becomes stronger (for better closing of tall doors).
